Reference: Property window

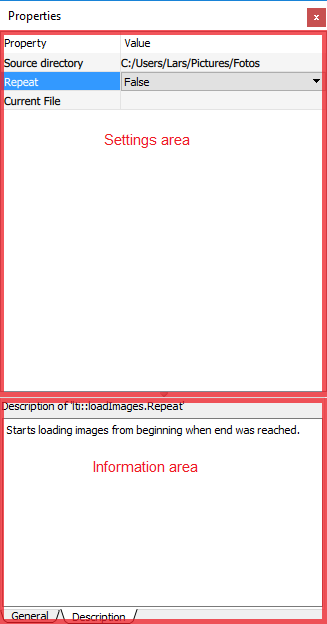

Property window overview (Click to enlarge)
The Property docking window shows all available settings for the item currently selected in the active process graph editor. This applies to macros, links, and the process graph itself. The settings for the process graph are displayed as soon as neither a macro nor a link is selected.
The window consists of two parts. The upper bigger part is the so called “Settings area", the lower part is the “Information area".
Settings area
The settings area displays all properties for the selected item which can be changed by the user. These are:
-
Process graph: Settings for the process graph are shown which currently just affects the layout of the graph.
-
Link: Currently links do not have any configurable properties.
-
Macros: For macros all adaptable parameters are listed. By default Impresario displays all parameters in a simple list with one parameter per row. However, the developer of a macro can choose to display the parameters in a different way.
Changing any setting here will affect the selected item instantly. All settings are stored with the process graph when it is
Saved
Information area
The information area displays more detailed information about the selected item in the process graph editor. Depending on the selected item type one or two different tabs with information are available. The Property Window page in the settings dialog allows to configure the default tab for each item type.
General information tab

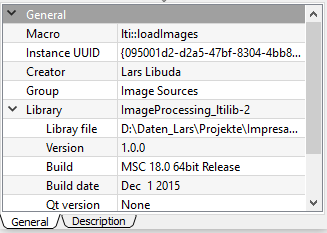

Tab for general item information (Click to enlarge)
General information are displayed for every item type:
-
Process graph: Information include the process graph’s name and the number of macros and links respectively.
-
Link: For links the data type and their source and destination is shown.
-
Macros: For macros you can find a subset of the details shown in the information area of the Macro database window when a macro is selected there.
Description tab

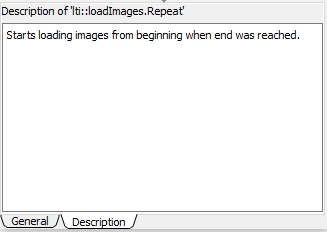

Tab displaying item descriptions (Click to enlarge)
The description tab is displayed only when a macro is selected in the editor. As soon as a macro is selected a detailed description is shown here, provided that the developer of the macro included it in her implementation. However, as soon as a macro parameter is selected in the settings area, a description of this parameter is shown. This of course only works correctly if the macro developer implemented the parameter help.
